Description

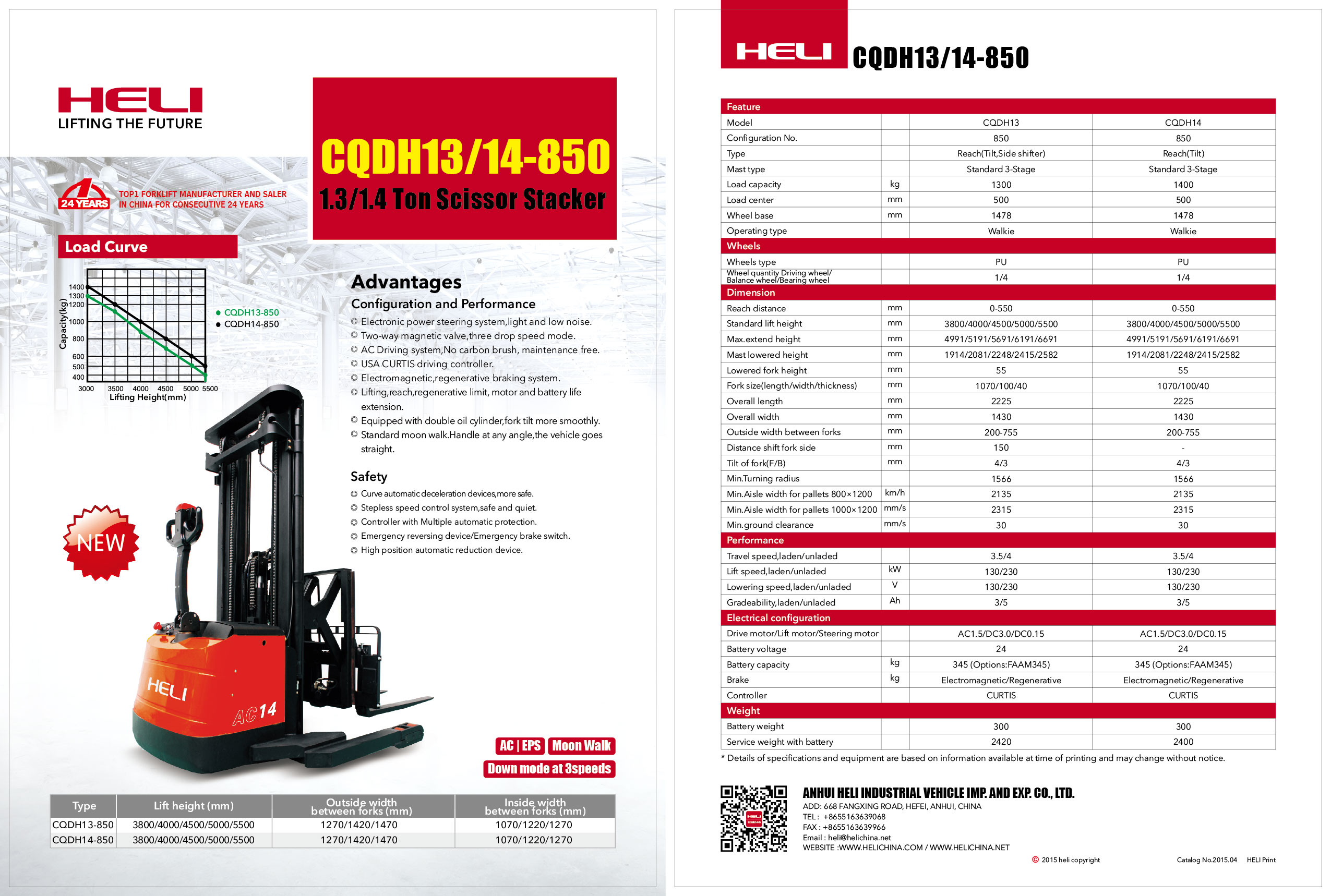

HELI 1.4 ton Electric Reach Stacker – CQDH14-850
- 1.4 ton Electric Reach Stacker with 5.5 meter lift height.
- AC Motor eliminates carbon brush replacement.
- Vertical driving wheel offers small turning radius.
- Dust- & water-proof motor.
- Emergency reversing device on handle ensures stacker’s safety.
- Emergency power disconnect switch is installed on stacker.
- Brake state in handle upright and horizontal position. Handle position increases reliability.
- Stacker can automatically decelerate on quick turning.
- Can-bus technology reduces wiring complexity and increases reliability.
Battery Warranty 1 year/2,000 hours (whichever comes first)Charger Warranty 1 year/2,000 hours (whichever comes first)
| Model |
CQDH14-850 |
| Load Capacity |
1,400kg@500mm load center |
| Operating type |
Walk behind |
| Mast Height |
5,500mm |
| Mast Type |
Three stage ( ZSM ) |
| Forks Length |
1150mm |
| Overall Length |
2225 mm |
| Overall Width |
1430mm |
| Battery Details |
Heli 24V/345Ah Battery |
| Controller |
ZAPI |
| Product Warranty |
1 year, excluding tyres. |
