Description

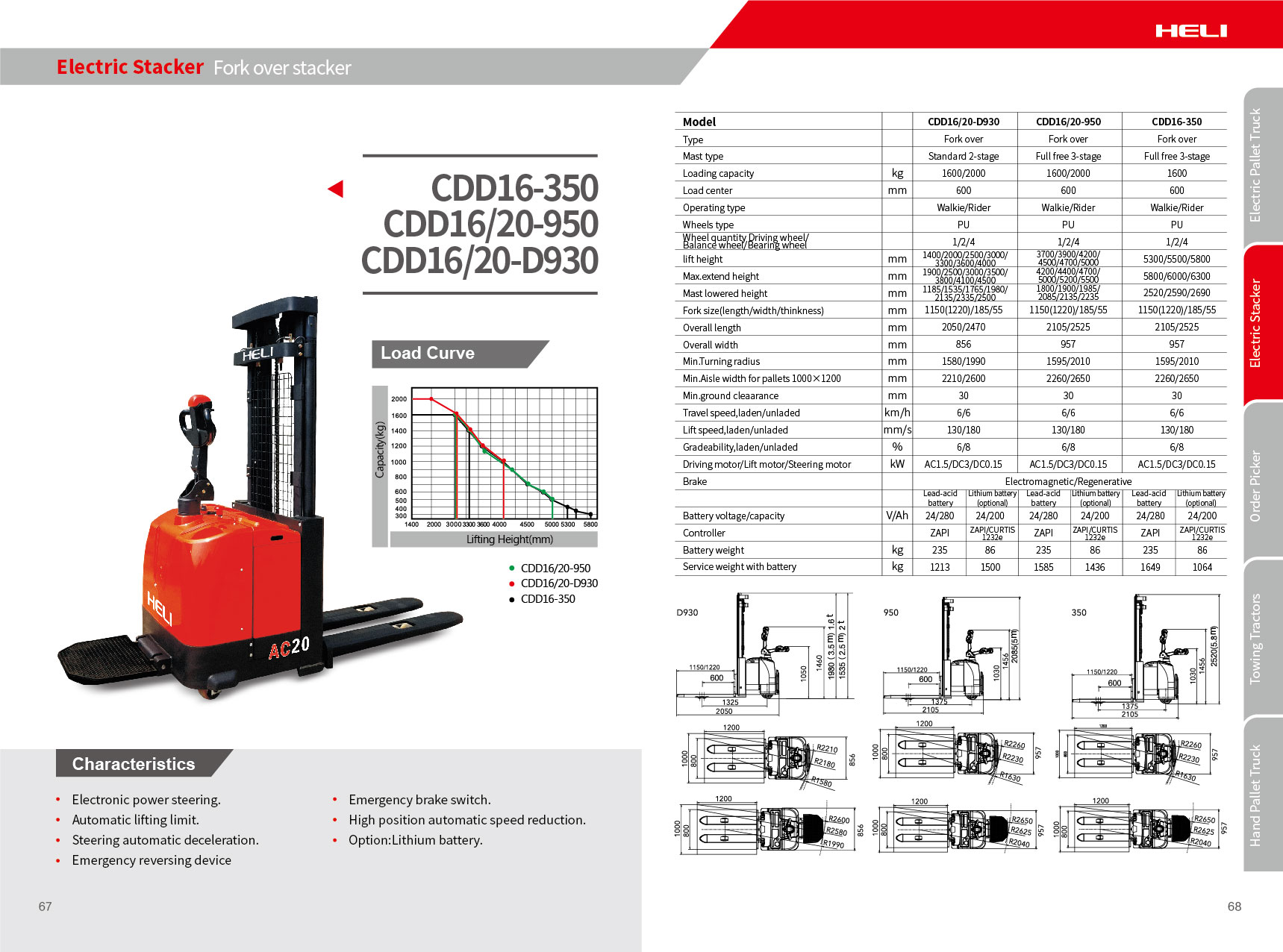

HELI 2 ton Electric Pallet Stacker (Narrow Leg) – CDD20-950Li (Lithium Battery)
- 2 ton Narrow Leg Electric Stacker with 5.0 meter lift height.
- AC Motor eliminates carbon brush replacement.
- Vertical driving wheel offers small turning radius.
- Dust- & water-proof motor.
- Emergency reversing device on handle ensures stacker’s safety.
- Emergency power disconnect switch is installed on stacker.
- Brake state in handle upright and horizontal position. Handle position increases reliability.
- Stacker can automatically decelerate on quick turning.
- Can-bus technology reduces wiring complexity and increases reliability.
- Fast Charging & Maintenance Free battery.
| Model |
CDD20-950Li |
| Load Capacity |
2,000kg@600mm load center |
| Operating type |
Ride-on / Pedestrian |
| Mast Height |
5,000mm |
| Mast Type |
Three stage ( ZSM ) |
| Forks Length |
1150mm |
| Overall Length |
2525 mm |
| Overall Width |
957mm |
| Battery Details |
24V/200Ah (Lithium Battery) |
| Controller |
Curtis |
| Product Warranty |
1 year, excluding tyres. |
| Battery Warranty |
5 years/10,000 hours (whichever comes first) |
| Charger Warranty |
1 year/2,000 hours (whichever comes first) |
